Everest

escape ladder

Private usage

Professional usage

Permanent facade ladder
Available up to 7.09 meters wall height
Suitable for professional use
Rest platforms obligatory above 10 meters

Choose your variant

Everest Façade ladder/Escape ladder (without hoop). Low-maintenance access ladder for façades

The Everest Façade ladder / Escape ladder (without hoop) is an aluminium access ladder with stainless steel attachment elements. Strong and low-maintenance. With the 30mm deep anti-slip rungs, you can ascend in comfort. Ideal for accessing the roof of a commercial building, house or flat quickly and easily.

This façade ladder / Escape ladder (without hoop) is easy to install. It is completely assembled at the point of delivery (option). The U-shaped wall supports come with pre-drilled holes. Enabling you to set the desired height.

Technical data:

- Ladder width (exterior) 56 cm
- Ladder width (interior) 50 cm
- Rung to rung distance 28 cm
- Distance to façade 20 cm
- Wall supports at each 200 cm

Product specifications

Product name

Everest escape ladder - 1 x 22 rungs

Number Wall Supports

Wall heigh (maximum)

6.25 m

All specifications

i	Product name	Everest escape ladder - 1 x 22 rungs
i	Number Wall Supports	4
i	Wall heigh (maximum)	6.25 m
i	Wall heigh (minimum)	5.98 m
i	Rungs	1 x 22
i	EAN code	8711563155657
i	Weight	31.3 kg
i	Article number	202222
i	Series	Everest

Product name	Number Wall Supports	Wall heigh (maximum)	Wall heigh (minimum)	Rungs	EAN code	Weight	Article number	Series
Everest escape ladder - 1 x 8 rungs	2	2.33 m	2.06 m	1 x 8	8711563155510	14.8 kg	202208	Everest
Everest escape ladder - 1 x 9 rungs	2	2.61 m	2.34 m	1 x 9	8711563155527	15.7 kg	202209	Everest
Everest escape ladder - 1 x 10 rungs	2	2.89 m	2.62 m	1 x 10	8711563155534	16.7 kg	202210	Everest
Everest escape ladder - 1 x 11 rungs	2	3.17 m	2.9 m	1 x 11	8711563155541	17.7 kg	202211	Everest
Everest escape ladder - 1 x 12 rungs	2	3.45 m	3.18 m	1 x 12	8711563155558	18.7 kg	202212	Everest
Everest escape ladder - 1 x 13 rungs	2	3.73 m	3.46 m	1 x 13	8711563155565	19.7 kg	202213	Everest
Everest escape ladder - 1 x 14 rungs	2	4.01 m	3.74 m	1 x 14	8711563155572	20.7 kg	202214	Everest
Everest escape ladder - 1 x 15 rungs	2	4.29 m	4.02 m	1 x 15	8711563155589	23 kg	202215	Everest
Everest escape ladder - 1 x 16 rungs	3	4.57 m	4.3 m	1 x 16	8711563155596	24 kg	202216	Everest
Everest escape ladder - 1 x 17 rungs	3	4.85 m	4.58 m	1 x 17	8711563155602	25 kg	202217	Everest
Everest escape ladder - 1 x 18 rungs	3	5.13 m	4.86 m	1 x 18	8711563155619	26 kg	202218	Everest
Everest escape ladder - 1 x 19 rungs	3	5.41 m	5.14 m	1 x 19	8711563155626	27 kg	202219	Everest
Everest escape ladder - 1 x 20 rungs	3	5.69 m	5.42 m	1 x 20	8711563155633	28 kg	202220	Everest
Everest escape ladder - 1 x 21 rungs	3	5.97 m	5.7 m	1 x 21	8711563155640	30.3 kg	202221	Everest
Everest escape ladder - 1 x 22 rungs	4	6.25 m	5.98 m	1 x 22	8711563155657	31.3 kg	202222	Everest
Everest escape ladder - 1 x 23 rungs	4	6.53 m	6.26 m	1 x 23	8711563155664	33.1 kg	202223	Everest
Everest escape ladder - 1 x 24 rungs	4	6.81 m	6.54 m	1 x 24	8711563155671	34.1 kg	202224	Everest
Everest escape ladder - 1 x 25 rungs	4	7.09 m	6.82 m	1 x 25	8711563155688	35.1 kg	202225	Everest

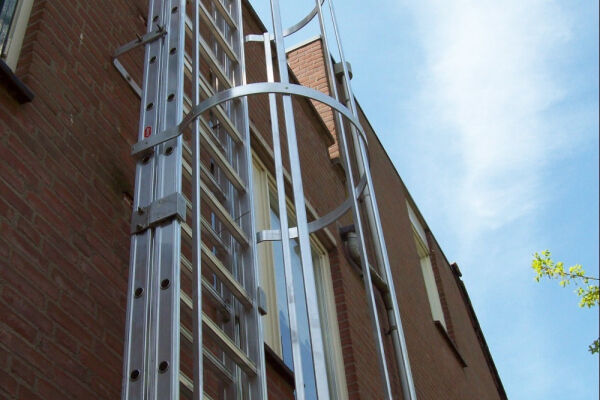

Also available with hoop

A safety cage is mandatory from a height of 3 metres. From 10 metres, there should be a rest platform every 6 metres. For more information, see our product range of hoop ladders.

Customisation possible

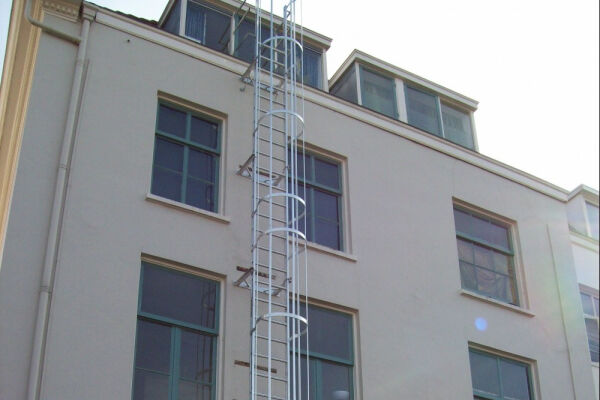

Would you like to use the Façade ladder / Escape ladder (without hoop) as an evacuation or fire-escape ladder? Or do you need the item customized? Contact our customisation specialist to discuss the options.
